RANGE OF EXPERIMENTS TO BE CARRIED OUT:

• To Calculate the Orificemeter coefficient of given Orifice meter and compare with the reported value in literature.
• To Calculate the Mouthpiece meter coefficient of given Mouthpiece meter and compare with the reported value in literature.
• To Calculate the Coefficient of Velocity of given Mouthpiece meter and Orifice meter.
• To Calculate the Coefficient of Contraction of given Mouthpiece meter and Orifice meter.

TECHNICAL DESCRIPTION :

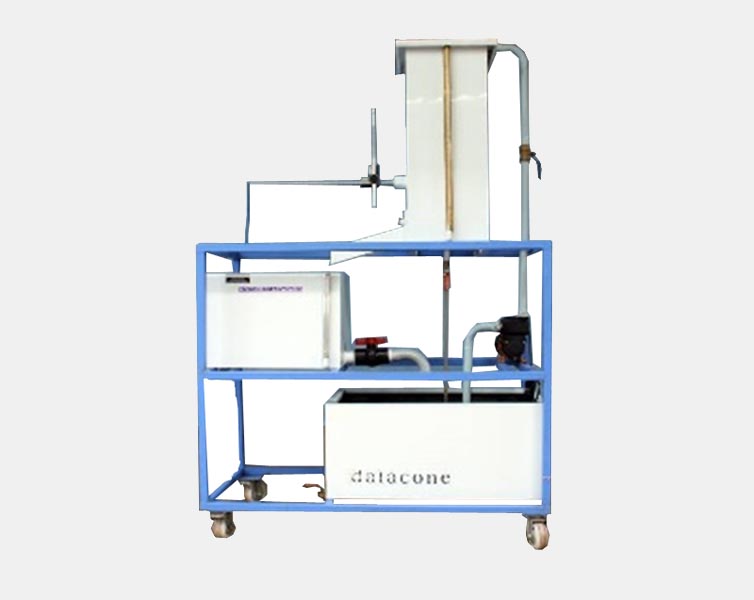

The experimental unit consists of an overhead tank with scale, at the bottom of which orifice or mouthpiece can be fixed. a water sump tank with self-priming monoblock centrifugal pump. The flow of water can be controlled by a valve.. A measuring tank is provided for measurement of discharge of water through the Section. A Horizontal and vertical scale is fixed for measurement of flow of jet. This system is complete closed circuit type and easy to move due to wheels.

DIMENSIONS AND WEIGHT :

Size :1.2 m.(L)x 0.7 m(W) X 1.7m ( H )
Weight :Approx. 40 Kg

SERVICE REQUIRED :

Power Supply : 230v, AC ,Single Phase , 50HZ

Water :100 ltr

SCOPE OF DELIVERY:

• Experimental Setup
• Instruction Manual
