RANGE OF EXPERIMENTS TO BE CARRIED OUT:

• To Calculate the friction losses through the pipes connected in Parallel.
• To Calculate the friction losses through each individual pipe connected in parallel.

TECHNICAL DESCRIPTION :

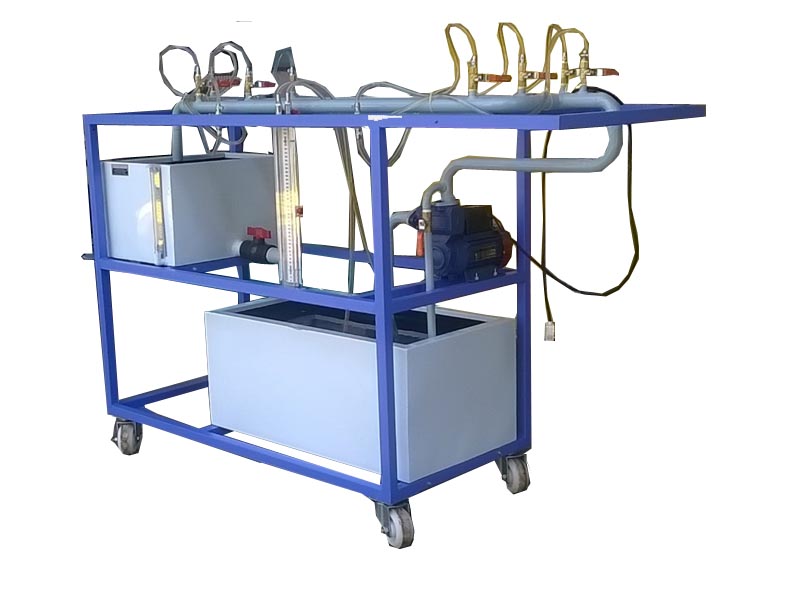

The experimental unit consists of three different diameter pipes connected in parallel. a water sump tank with self-priming monoblock centrifugal pump. The flow of water can be controlled by a valve.. A measuring tank is provided for measurement of discharge of water through the Section. The frictional loss along the length of pipe is measured by using U tube Manometer. This system is complete closed circuit type and easy to move due to wheels.

DIMENSIONS AND WEIGHT :

Size :1.5 m.(L)x 0.7 m(W) X 1.2m ( H )
Weight :Approx. 60 Kg

SERVICE REQUIRED :

Power Supply : 230v, AC ,Single Phase , 50HZ

Water :80 ltr

SCOPE OF DELIVERY:

• Experimental Setup
• Instruction Manual
