RANGE OF EXPERIMENTS TO BE CARRIED OUT:
- To Calculate the angular velocity of the cylinder.
- To calculate the height of vortex experimentally.
TECHNICAL DESCRIPTION :

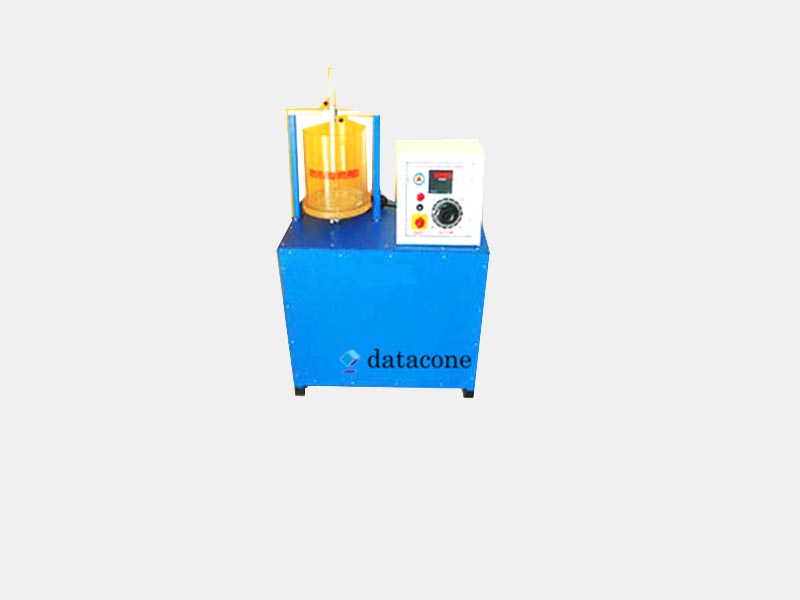

This equipment is designed as Recirculation type set-up. It is meant for conducting experiment on Free and forced Vortex Flow. The Equipment consists of Acrylic Cylinder fitted on a rotating platform arrangement for measuring X & Y coordinates of the Vortex is provided. The Dimmer stat is providing to control the rotation of acrylic cylinder. A pump is provided for circulation of water.
DIMENSIONS AND WEIGHT :
Size :1.5 m.(L)x 0.7 m(W) X 1.5m (H)
Weight :Approx. 60 Kg
SERVICE REQUIRED :
Power Supply : 230v, AC ,Single Phase , 50HZ
Water :80 ltr
SCOPE OF DELIVERY:
- Experimental Setup
- Instruction Manual
