RANGE OF EXPERIMENTS TO BE CARRIED OUT:
- To observe the cavity formation.
TECHNICAL DESCRIPTION :

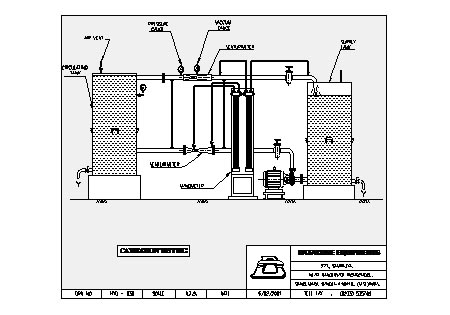

The setup consists two cylindrical tanks connected in series by using pipes. Pipes. A transparent venturimeter is fixed in pipe for observation of cavity. A monoblock pump is provided for circulation of water. Differential pressure across the venturimeter is measured by using u tube differential manometer.This system is complete closed circuit type and easy to move due to wheels.
DIMENSIONS AND WEIGHT :
Size :4.5 m.(L)x 1.5 m(W) X 1.5 m( H )
Weight :Approx. 120 Kg
SERVICE REQUIRED :
Power Supply: 230v, AC ,Single Phase , 50HZ
Water :200 ltr
SCOPE OF DELIVERY:
- Experimental Setup
- Instructional Manual
