RANGE OF EXPERIMENTS TO BE CARRIED OUT:
- To Calculate the Rotameter coefficient of given Rotameter and compare with the reported value in literature.
- To predict the flow rate by using average value of coefficient of Rotameter.
TECHNICAL DESCRIPTION :

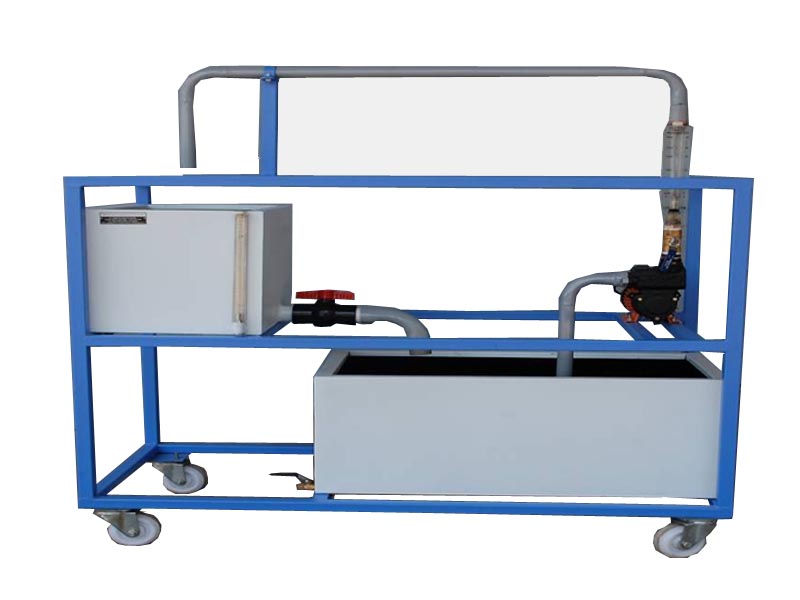

The experimental unit consist of Rotameterfixed in the pipe. a water sump tank with self-priming monoblock centrifugal pump. The flow of water can be controlled by a valve.. A measuring tank is provided for measurement of discharge of water through the Section.This system is complete closed circuit type and easy to move due to wheels.
DIMENSIONS AND WEIGHT :
Size :1.2 m.(L)x 0.7 m(W) X 1.2m ( H )
Weight :Approx. 40 Kg
SERVICE REQUIRED :
Power Supply:230v, AC ,Single Phase , 50HZ
Water :80 ltr
SCOPE OF DELIVERY:
- Experimental Setup
- Instructional Manual
