RANGE OF EXPERIMENTS TO BE CARRIED OUT:
- Study of velocity profiles.
- Study of settling length.
- Determination of friction coefficient.
TECHNICAL DESCRIPTION :

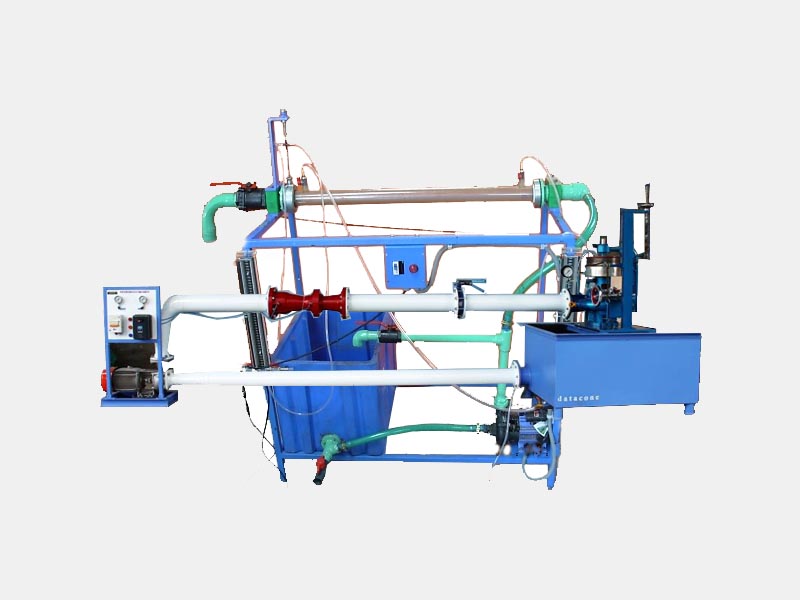

The apparatus consists of a circular pipe with pressure taps. Steady flow is set up in the pipe with the help of a suitable pump. Differential manometer measures the pressure drop. Pitot probe placed in the pipe measures the pressure and velocity. The probe can be traversed over a diameter to determine velocity profiles. A calibrated orificemeter fitted in the pipe gives the discharge and acts as a fitting to determine setting length.
DIMENSIONS AND WEIGHT :
Size :1.5 m.(L)x 1.0 m(W) X 1.0m ( H )
Weight :Approx. 60 Kg
SERVICE REQUIRED :
Power Supply:230 v Ac SupplySingle Phase 50 Hz
Water :100 ltr
SCOPE OF DELIVERY:
- Experimental Setup
- Instructional Manual
