RANGE OF EXPERIMENTS TO BE CARRIED OUT:
- To observe the flow around the bodies of different shapes.
TECHNICAL DESCRIPTION :

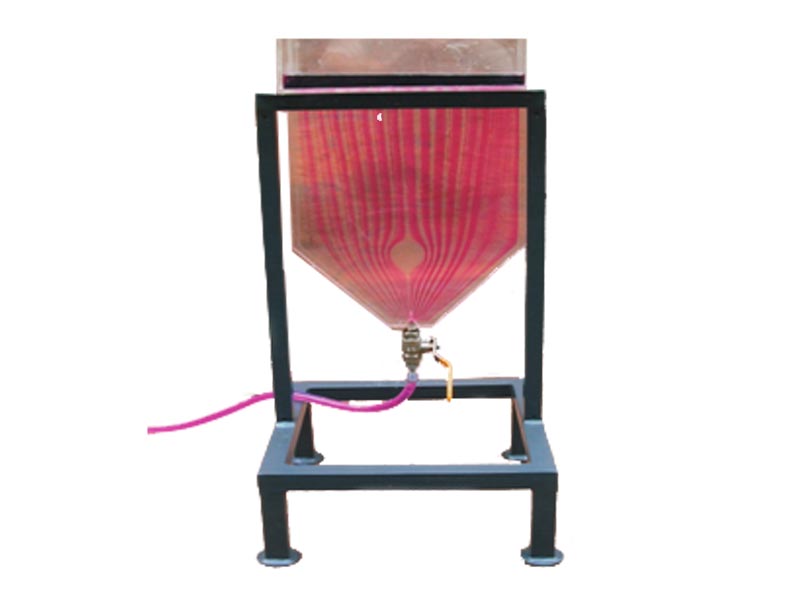

The apparatus consists of Flow table made of two laminated glass / acrylic sheets which are closely spaced and fixed in a leak proof molding. A small dye and water tanks are mounted on the top of flow table. The stream line flow of water and dye around bodies placed in flow table is controlled by using flow control. The entire setup fixed on sturdy MS frame.
DIMENSIONS AND WEIGHT :
Size :1.5 m.(L)x 1.0 m(W) X 1.0m ( H )
Weight :Approx. 60 Kg
SERVICE REQUIRED :
Power Supply:230 v Ac Supply Single Phase 50 Hz
Water :100 ltr
SCOPE OF DELIVERY:
- Experimental Setup
- Instructional Manual
