RANGE OF EXPERIMENTS TO BE CARRIED OUT:

• To Study the Single Limb Manometer.
• To Study the Inclined tube Manometer.
• To Study the U tube differential Manometer.
• To Study the Pressure Gauge.
• To Study the Vacuum Gauge.

TECHNICAL DESCRIPTION :

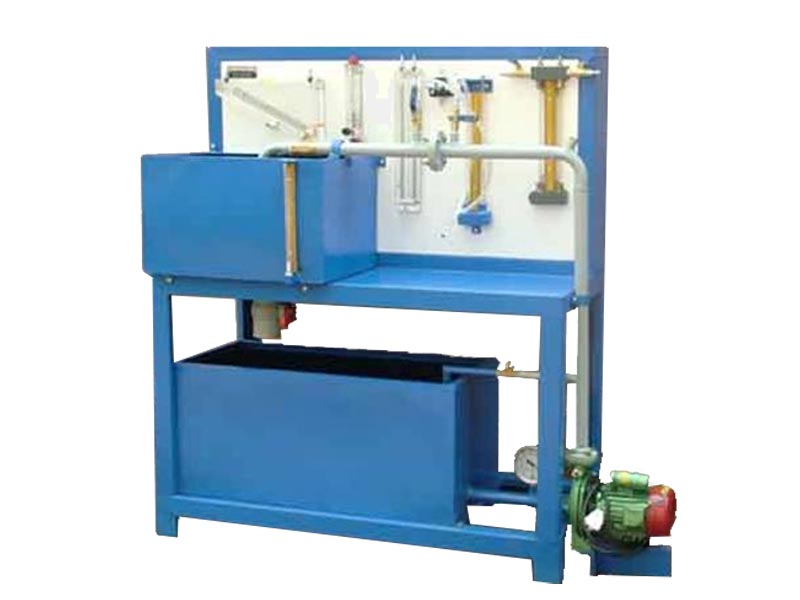

The apparatus consists Centrifugal pump of suitable capacity is mounted on Sump Tank. Suction and discharge pressure are measured by using vacuum and pressure gauge respectively. Different types of manometers are fixed on the pipe for measurement of pressure. Flow through pump is controlled by using discharge control valve. Discharge though the pump is measured by using measuring tank. This system is complete closed circuit type and easy to move due to wheels.

DIMENSIONS AND WEIGHT :

Size :1.5 m.(L)x 1.0 m(W) X 1.5m ( H )
Weight :Approx. 60 Kg

SERVICE REQUIRED :

Power Supply:230 v Ac Supply 50 Hz

Water :100 ltr

SCOPE OF DELIVERY:

• Experimental Setup
• Instructional Manual
