RANGE OF EXPERIMENTS TO BE CARRIED OUT:
- Venturimeter.
- Orificemeter
- Pipe Friction Experiment.
- Losses in Pipe Fittings.
- Impact of Jet Experiment.
- V-Notch Experiment.
- Rectangular Notch Experiment.
- Rotameter.
- Reynolds Experiment.
- Bernoulli’s Theorem Experiment.
TECHNICAL DESCRIPTION :

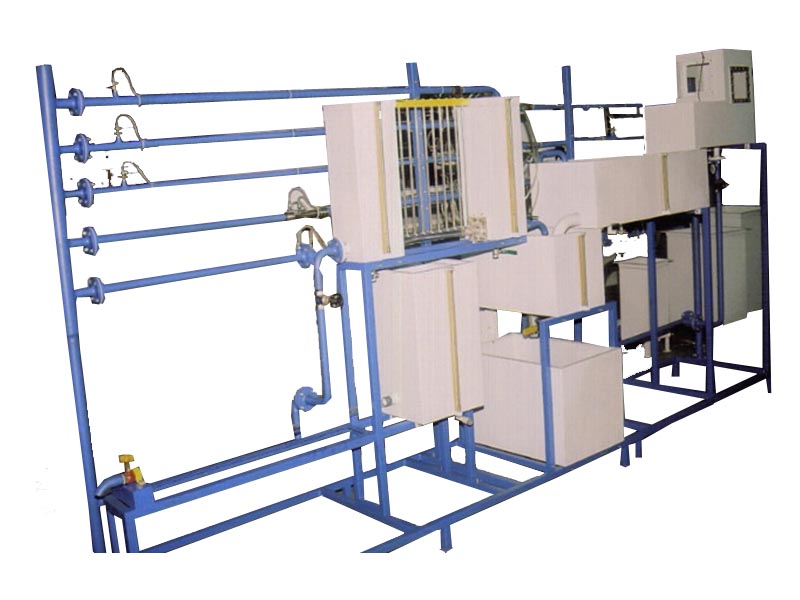

The experimental unit Comprises of 10 no. of experiments. a water sump tank with self-priming monoblock centrifugal pump. The flow of water can be controlled by a valve.. A measuring tank is provided for measurement of discharge of water through the Section. The Differential Pressure is measured by using U tube Manometer.
DIMENSIONS AND WEIGHT :
Size :3 m.(L)x 1 m(W) X 1.5m ( H )
Weight :Approx. 300 Kg
SERVICE REQUIRED :
Power Supply:230v, AC ,Single Phase , 50HZ
Water :200 ltr
SCOPE OF DELIVERY:
- Experimental Setup
- Instructional Manual
