Cut Section Model Of Pelton Turbine

RANGE OF EXPERIMENTS TO BE CARRIED OUT:

To study the Pelton Turbine.

TECHNICAL DESCRIPTION :

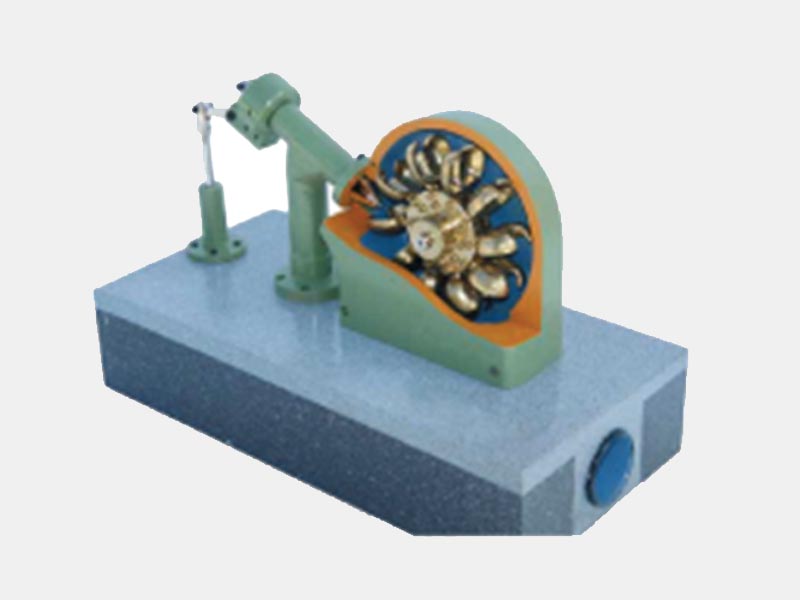

An all metallic working model, comprising of a single jet horizontal shaft turbine. A 20 cm dia. disc is provided with double hemispherical cups mounted in housing with a transparent window on one side.

DIMENSIONS AND WEIGHT :

Size :0.3 m.(L)x 0.3 m(W) X 0.3m ( H )
Weight :Approx. 2 Kg

SCOPE OF DELIVERY:

model
