Bell Crank Lever


Bell Crank Lever

TECHNICAL DESCRIPTION :

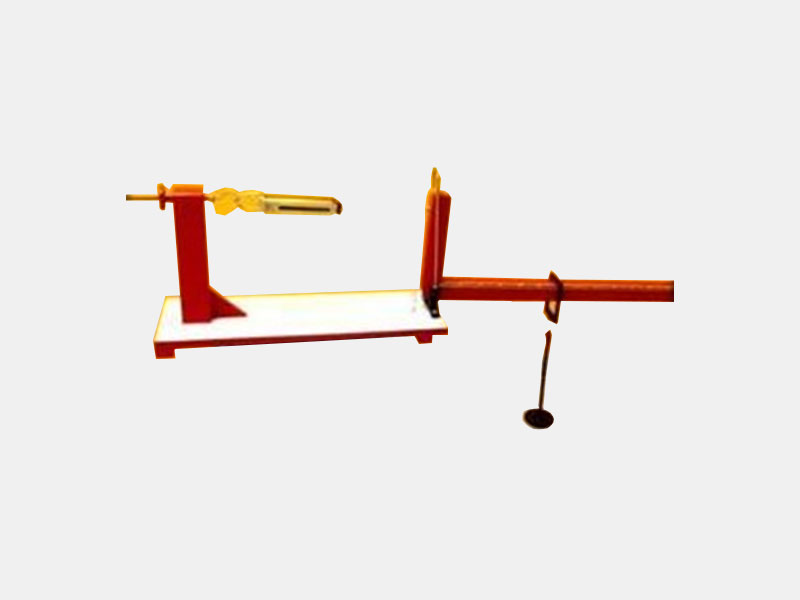

A wooden right angled lever with fulcrum at the angle, the horizontal arm is of 75 cm & vertical arm is of 20 cm, a spring balance with adjustable wingnut is attached to the shorter arm. The lever arm is with scale and grooved at every 5 cm. Complete with one sliding weight of 1 kg.

DIMENSIONS AND WEIGHT :

Size : 0.4 m.(L)x 0.4 m(W) X 0.6m ( H )

WEIGHT : Approx. 4 Kg



SCOPE OF DELIVERY :

  • Experimental Setup
  • Instructional Manual
