RANGE OF EXPERIMENTS TO BE CARRIED OUT :

• To study the strain gauge.
• To Calibrate the strain gauge

TECHNICAL DESCRIPTION :

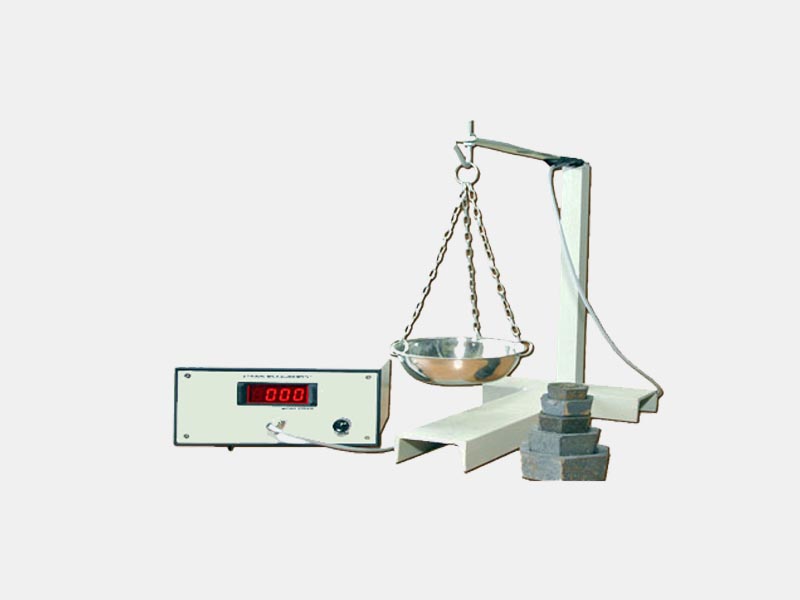

Here a Mild Steel Cantilever Beam is fitted with Strain Gages as sensing elements. The Cantilever structure itself fixes one end in a rigid way to a Channel Frame / Stand. Whereas other end is kept free for applying loads etc. One can apply loads to this free using a Weight Pan type arrangement.As we know for any Cantilever Beam, Free end shows max. deflection where as fix end shows max. Strain. So Strain Gages are pasted nearby this fix end, in Full Bridge Manner, so that max. Strain concentration could be observed / measured.Here a standard as well as well known Instrumentation Amplifier based design is implemented. Basic Tare or Zero adjustment is provided to nullify the initial Strain if any. Strain will be indicated on digital indicator.

DIMENSIONS AND WEIGHT :

Size : 0.5 m.(L)x 0.5 m(W) X 0.5m ( H )
Weight : Approx. 4 Kg

SERVICE REQUIRED :

Power Supply : 230 v Ac Supply 50 Hz

SCOPE OF DELIVERY:

• Experimental Setup
• Instructional Manual
