RANGE OF EXPERIMENTS TO BE CARRIED OUT :
- To Study the force transducers.
- To Measure the force applied by using pneumatic cylinder
TECHNICAL DESCRIPTION :

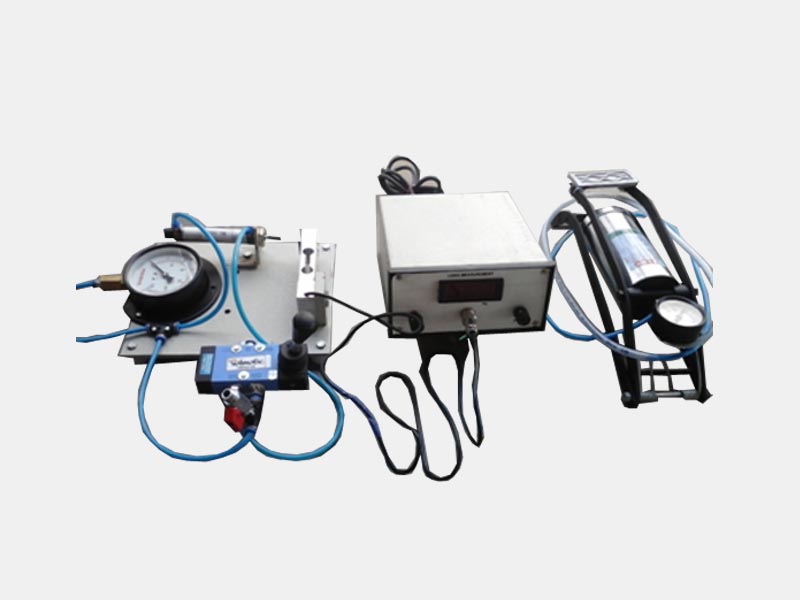

DATACONE makes the force indicatorhas been designed for direct measurement of force. The instrument calibrated for display of force. The Setup consists of pneumatic cylinder with lever operated valve. Pressure gauge is provided for measurement of pressure applied on the cylinder. Foot operated pump is used to apply pressure on pneumatic cylinder. Pneumatic cylinder applies pressure on the force transducer that will be directly displayed on digital panel.
DIMENSIONS AND WEIGHT :
Size : 0.5 m.(L)x 0.5 m(W) X 0.5m ( H )
Weight : Approx. 5 Kg
SERVICE REQUIRED :
Power Supply : 230 v Ac Supply 50 Hz
SCOPE OF DELIVERY:
- Experimental Setup
- Instructional Manual
