RANGE OF EXPERIMENTS TO BE CARRIED OUT :
- To Measure the pressure using pressure transducer.
TECHNICAL DESCRIPTION :

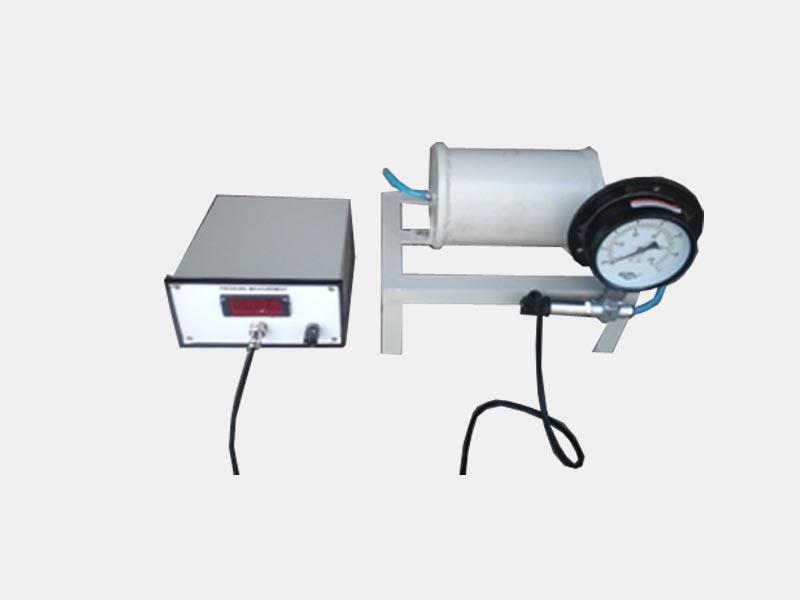

The setup consists of Mild steel cylinder with pressure gauge and pressure transducer. A foot operated pump is used to apply pressure in cylinder. Here a standard as well as well known Instrumentation Amplifier based design is implemented. Basic Tare or Zero adjustment is provided to nullify the initial Strain if any. The pressure is directly displayed on digital panel.
DIMENSIONS AND WEIGHT :
Size : 0.5 m.(L)x 0.5m(W) X 0.4m ( H )
Weight : Approx. 5 Kg
SERVICE REQUIRED :
Power Required : 230v ac Single Phase , 6amp
SCOPE OF DELIVERY:
- Experimental Setup
- Instructional Manual
