RANGE OF EXPERIMENTS TO BE CARRIED OUT :
- To Measure the pressure using lvdt.
TECHNICAL DESCRIPTION :

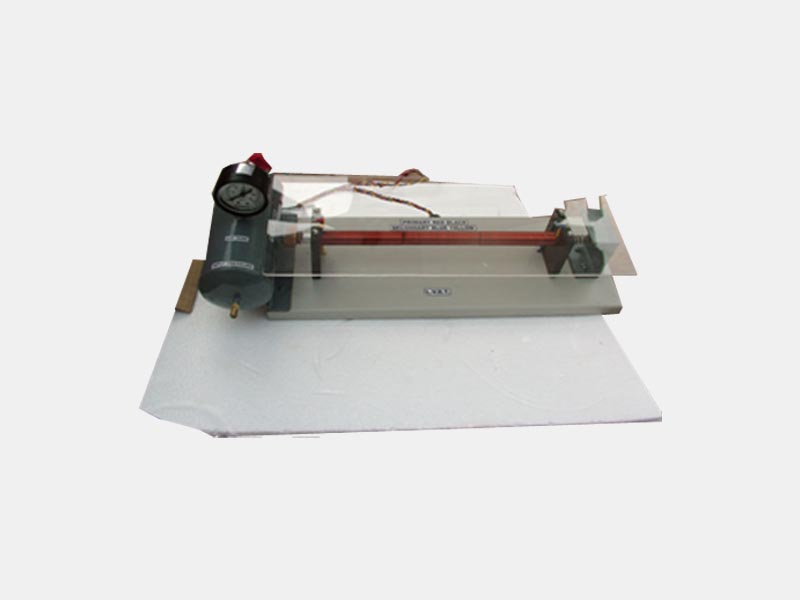

The setup consist of Mild steel cylinder with pressure gauge and LVDT Transducer .A foot operated pump is used to apply pressure in cylinder.Here a standard as well as well known Instrumentation Amplifier based design is implemented . Basic Tare or Zero adjustment is provided to nullify the initial Strain if any. The pressure is directly displayed on digital panel.
DIMENSIONS AND WEIGHT :
Size : 0.5 m.(L)x 0.5m(W) X 0.4m ( H )
Weight : Approx. 5 Kg
SERVICE REQUIRED :
Power Required : 230v ac Single Phase , 6amp
SCOPE OF DELIVERY:
- Experimental Setup
- Instructional Manual
