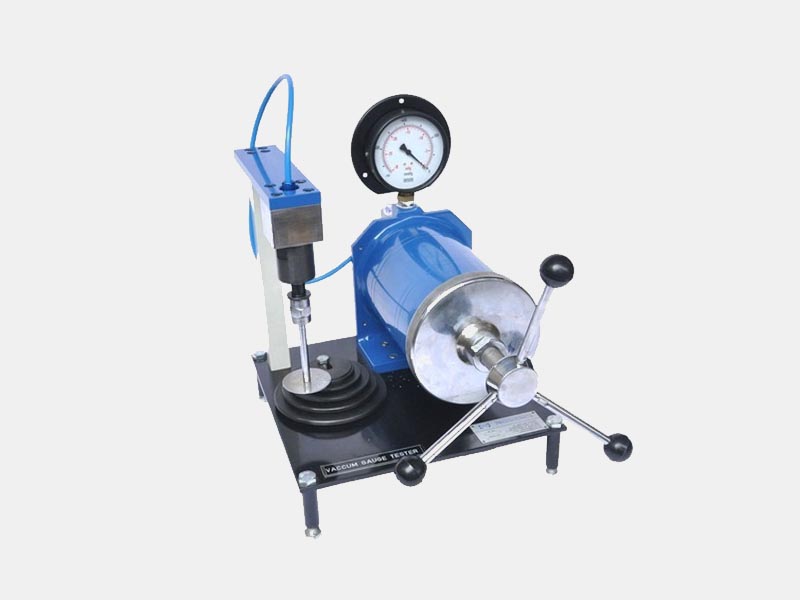

Dead Weight Vaccum Guage Tester

RANGE OF EXPERIMENTS TO BE CARRIED OUT :

To calibrate the given Vacuum gauge.

TECHNICAL DESCRIPTION :

The setup consists of screw pump to generate the vacuum. The free piston assembly is connected to the screw pump. The set of dead weights is attached to the piston assembly. The whole setup is mounted on sturdy MS plate with good color combination.

DIMENSIONS AND WEIGHT :

Size : 0.5 m.(L)x 0.5m(W) X 0.4m ( H )
Weight : Approx. 3 Kg

SCOPE OF DELIVERY:

Experimental Setup
Instructional Manual
