RANGE OF EXPERIMENTS TO BE CARRIED OUT :
- To Measure the Pressure using Pirani gauge.
TECHNICAL DESCRIPTION :

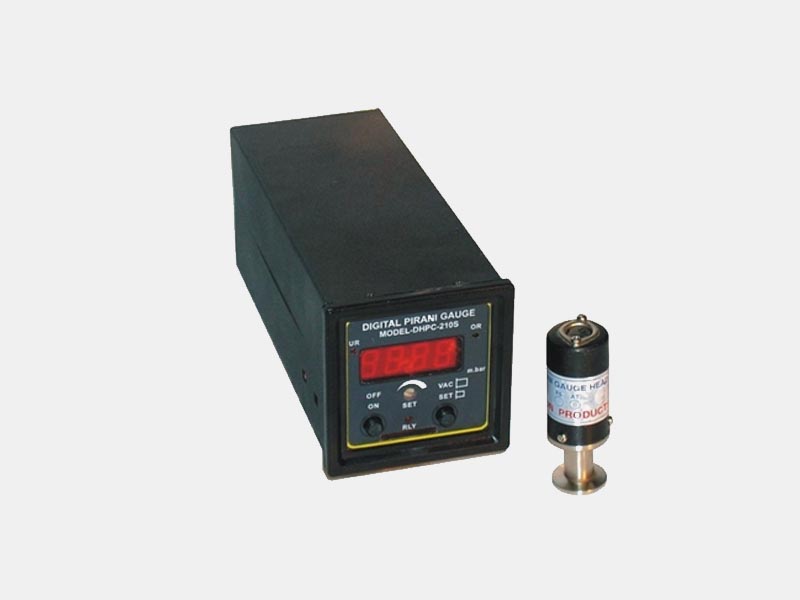

The Pirani gauge consists of a metal filament suspended in a tube which is connected to the system whose vacuum is to be measured. Connection is usually made either by a ground glass joint or a flanged metal connector, sealed with an o-ring. The filament is connected to an electrical circuit from which, after calibration, a pressure reading may be taken. It displays vacuum measurements based on thermal conductivity of air or nitrogen.
DIMENSIONS AND WEIGHT :
Size : 0.3 m.(L)x 0.3m(W) X 0.4m ( H )
Weight : Approx. 3 Kg
SERVICE REQUIRED :
Power Required : 230 v AC Single Phase.
SCOPE OF DELIVERY:
- Experimental Setup
- Instructional Manual
