RANGE OF EXPERIMENTS TO BE CARRIED OUT :
- To study the Displacement Measurement using Inductive Transducer.
TECHNICAL DESCRIPTION :

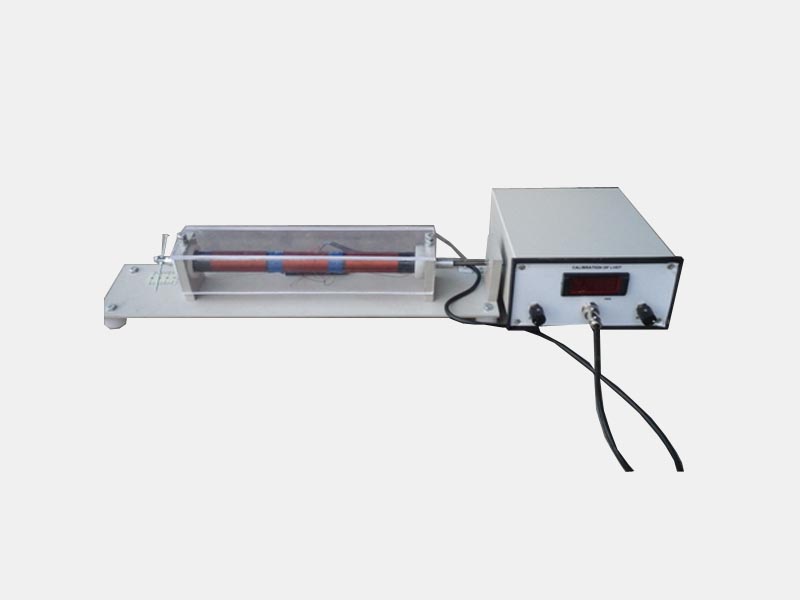

The provided set is designed to study of inductive transducer as measurement of linear displacement. It has inbuilt excitation source, signal processing circuitry and a digital panel meter which can be adjusted to read displacement in mm. The set up has an inductive transducer in shape of two coils the reluctance of which is varied by mean of an iron core. Complete process is well printed in blocks with test points in form of sockets to observe / measure waveforms.
DIMENSIONS AND WEIGHT :
Size : 0.5 m.(L)x 0.5m(W) X 0.4m ( H )
Weight : Approx. 5 Kg
SERVICE REQUIRED :
Power Required : 230 v AC Single Phase.
SCOPE OF DELIVERY:
- Experimental Setup
- Instructional Manual
