RANGE OF EXPERIMENTS TO BE CARRIED OUT :
- To study the Displacement Measurement using Roary Encoder.
TECHNICAL DESCRIPTION :

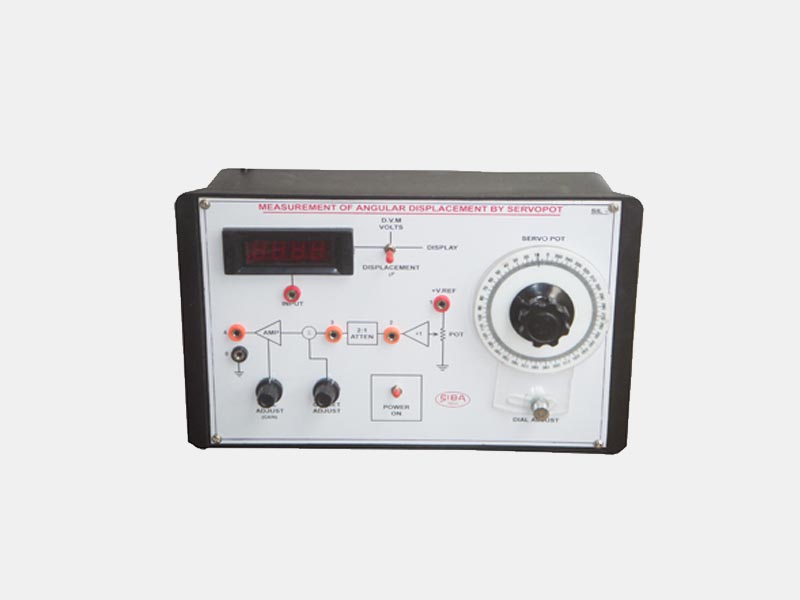

The simplest and accurate transducer used to measure displacement is potentiometer. This sensor converts linear (or angular ) displacement into electrical signals, by changing its resistance. A potentiometeric transducer is an electromechanical device contains a resistive element which is kept fixed at two ends and a wiper arrangement is made as moveable slider.
DIMENSIONS AND WEIGHT :
Size : 0.5 m.(L)x 0.5m(W) X 0.4m ( H )
Weight : Approx. 5 Kg
SERVICE REQUIRED :
Power Required : 230 v AC Single Phase.
SCOPE OF DELIVERY:
- Experimental Setup
- Instructional Manual
