RANGE OF EXPERIMENTS TO BE CARRIED OUT :
- To study the Angular Displacement Measurement using Capacitive Pickup
TECHNICAL DESCRIPTION :

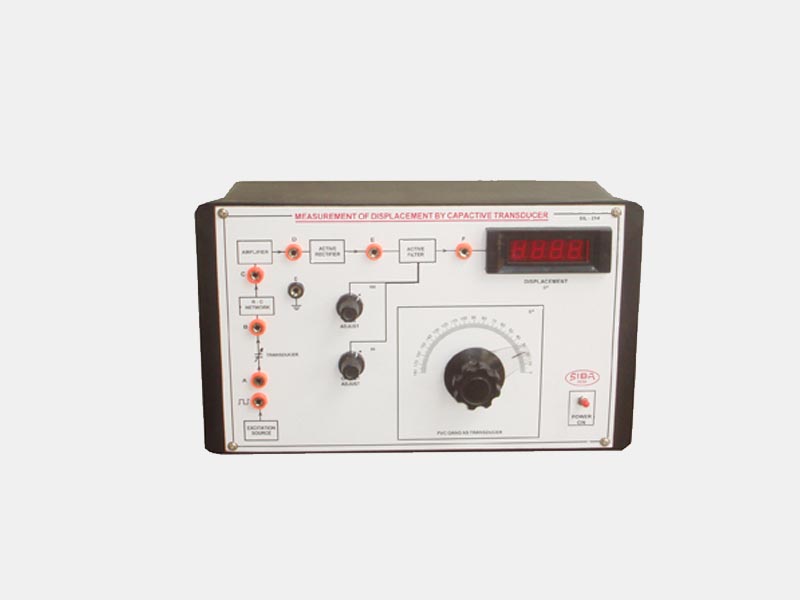

The provided set is designed to study of capacitive transducer. It has inbuilt excitation source, signal processing circuitry and a digital panel meter which can be adjusted to read displacement in mm. The set up has a ppc dielectric PVC ganged capacitor as transducer.
DIMENSIONS AND WEIGHT :
Size : 0.5 m.(L)x 0.5m(W) X 0.4m ( H )
Weight : Approx. 5 Kg
SERVICE REQUIRED :
Power Required : 230 v AC Single Phase.
SCOPE OF DELIVERY:
- Experimental Setup
- Instructional Manual
