RANGE OF EXPERIMENTS TO BE CARRIED OUT :

• To study the Angular Displacement Measurement using Inductive and Magnetic Pickup.

TECHNICAL DESCRIPTION :

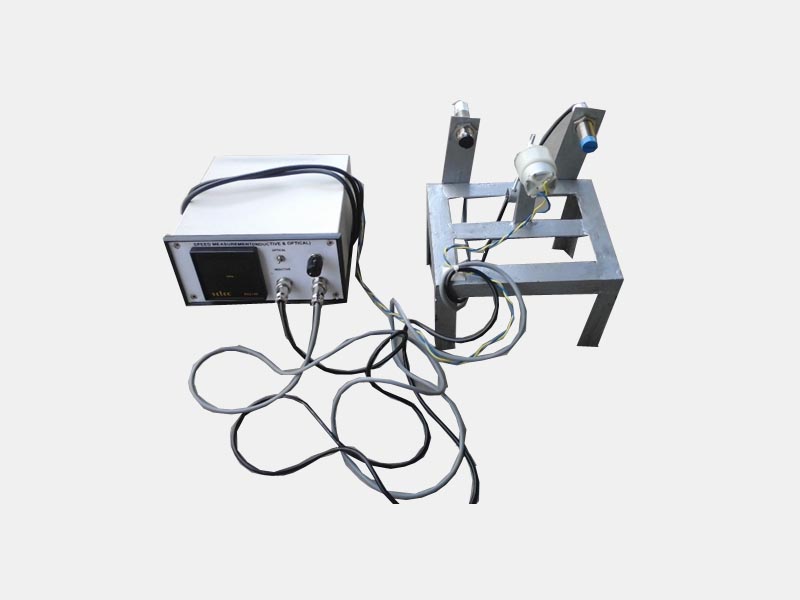

Here a small motorized Set Up is provided. Motor output speed is controlled using a typical Dimmer type arrangement.During rotation of multi bolted disc, whenever bolt comes in line with Inductive Pick Up, change in reluctance takes place to generate some pulse type signal. And whenever bolt gets ahead, no reluctance change to generate any signal. Where as for Magnetic Pick Up, whenever bolt comes in line with the same, photoelectric rays get obstruction to generate some pulse type signal. And whenever bolt gets ahead, no obstruction to generate any signal. This input will be processed using RPM Indicator.

DIMENSIONS AND WEIGHT :

Size : 0.5 m.(L)x 0.5m(W) X 0.4m ( H )
Weight : Approx. 5 Kg

SERVICE REQUIRED :

Power Required : 230 v AC Single Phase.

SCOPE OF DELIVERY:

• Experimental Setup
• Instructional Manual
