RANGE OF EXPERIMENTS TO BE CARRIED OUT :
- To Measure the flow using nozzle meter.
TECHNICAL DESCRIPTION :

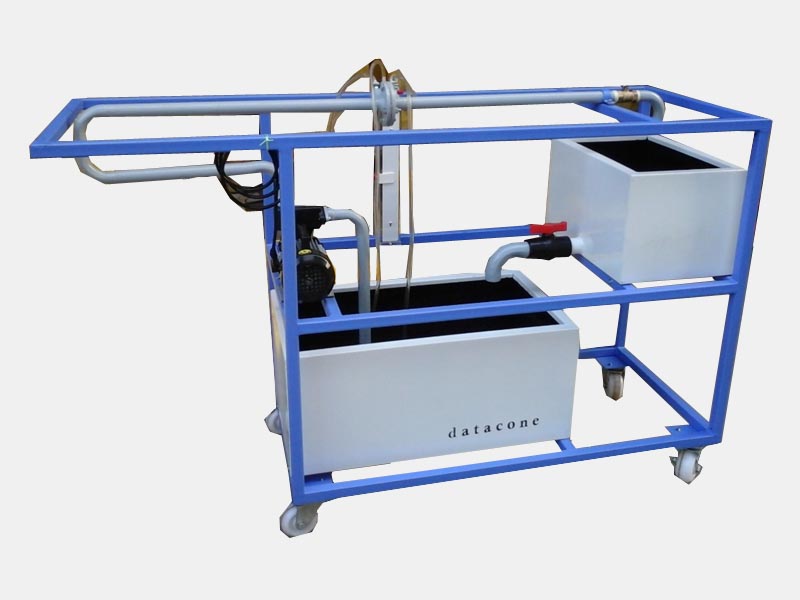

The experimental unit consist of Nozzle meterfixed in the pipe. a water sump tank with self-priming monoblock centrifugal pump. The flow of water can be controlled by a valve.. A measuring tank is provided for measurement of discharge of water through the Section. The Differential Pressure across the Nozzle meter is measured by using U tube Manometer. This system is complete closed circuit type and easy to move due to wheels.
DIMENSIONS AND WEIGHT :
Size : 1.5 m.(L)x 0.7 m(W) X 1.2m ( H )
Weight : Approx. 40 Kg
SERVICE REQUIRED :
Power Required : 230 v AC Single Phase, 50 Hz
Water : 80 Ltr
SCOPE OF DELIVERY:
- Experimental Setup
- Instructional Manual
