RANGE OF EXPERIMENTS TO BE CARRIED OUT :
- To Measure the flow using ELectronic Differential Pressure Transducer.
TECHNICAL DESCRIPTION :

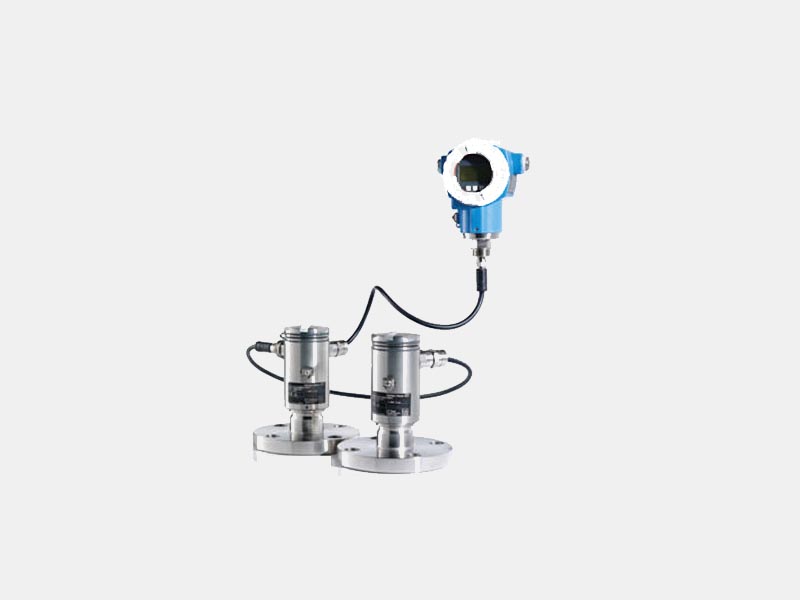

The experimental unit consists of Electronic Differential Pressure Transducer inserted in the pipe. a water sump tank with self-priming monoblock centrifugal pump. The flow of water can be controlled by a valve.. A measuring tank is provided for measurement of discharge of water through the Section. The Differential Pressure across the transducer is displayed on digital indicator. This system is complete closed circuit type and easy to move due to wheels.
DIMENSIONS AND WEIGHT :
Size : 1.5 m.(L)x 0.7 m(W) X 1.2m ( H )
Weight : Approx. 40 Kg
SERVICE REQUIRED :
Power Required : 230 v AC Single Phase, 50 Hz
Water : 80 Ltr
SCOPE OF DELIVERY:
- Experimental Setup
- Instructional Manual
