RANGE OF EXPERIMENTS TO BE CARRIED OUT :
- To Measure the Level of water in tank by using capacitive sensor
TECHNICAL DESCRIPTION :

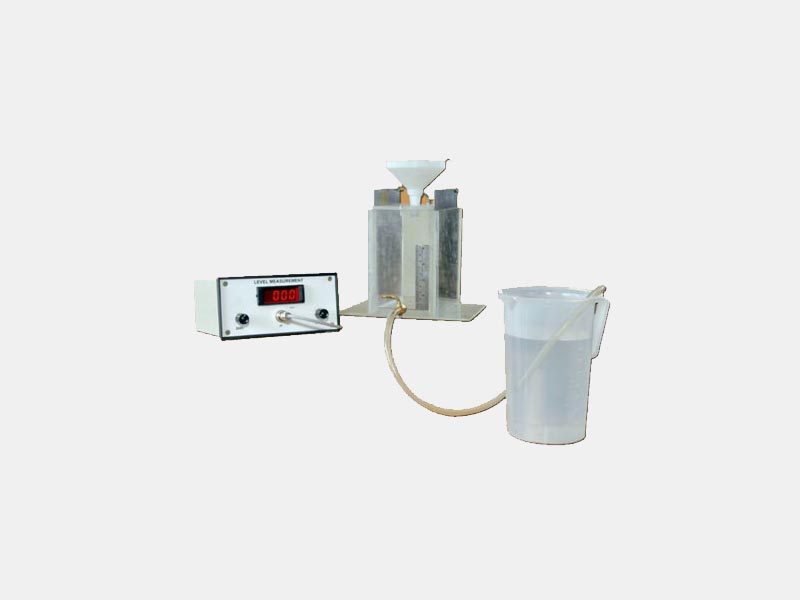

The setup consists of capacitive sensor, which is a two wire transmitter operating in the range 4ma to 20 ma. The change in the capacitance experienced by sensor because of change in height of water. The sensor is placed in the small tank , this tank is provided with scale. The output from the sensor is shown on digital display in terms of height of water.
DIMENSIONS AND WEIGHT :
Size : 0.5 m.(L)x 0.5 m(W) X 0.5m ( H )
Weight : Approx. 5 Kg
SERVICE REQUIRED :
Power Required : 230 v AC Single Phase, 50 Hz
Water : 2 Ltr (Distilled)
SCOPE OF DELIVERY:
- Experimental Setup
- Instructional Manual
