RANGE OF EXPERIMENTS TO BE CARRIED OUT :

• To Study and use the strip chart recorder.

TECHNICAL DESCRIPTION :

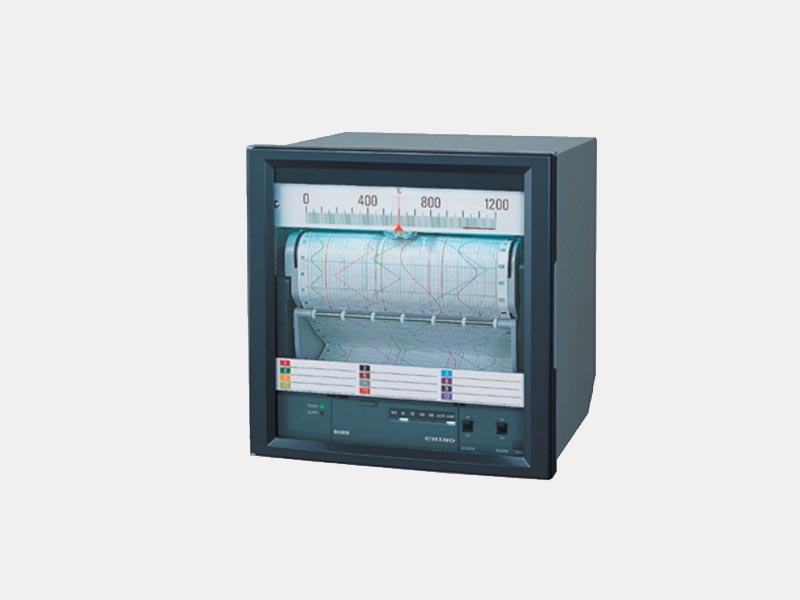

A chart recorder is an instrument used to record various process and electrical signals. The most traditional chart recorders record data on paper. The paper is passed under a pen and the pen is deflected in proportion to the signal. The result is a graph or chart of the data. Strip Chart Recorders consist of a roll or strip of paper that is passed linearly beneath one or more pens. As the signal changes the pens deflect producing the resultant chart. The Recorders are well suited for recording of continuous processes. Sections of the paper can be torn off and archived for future reference.

DIMENSIONS AND WEIGHT :

Size : 0.5 m.(L)x 0.5 m(W) X 0.5m ( H )
Weight : Approx. 7 Kg

SERVICE REQUIRED :

Power Required : 230 v AC

SCOPE OF DELIVERY:

• Experimental Setup
• Instructional Manual
