RANGE OF EXPERIMENTS TO BE CARRIED OUT :
- To Study and use Proving Ring.
TECHNICAL DESCRIPTION :

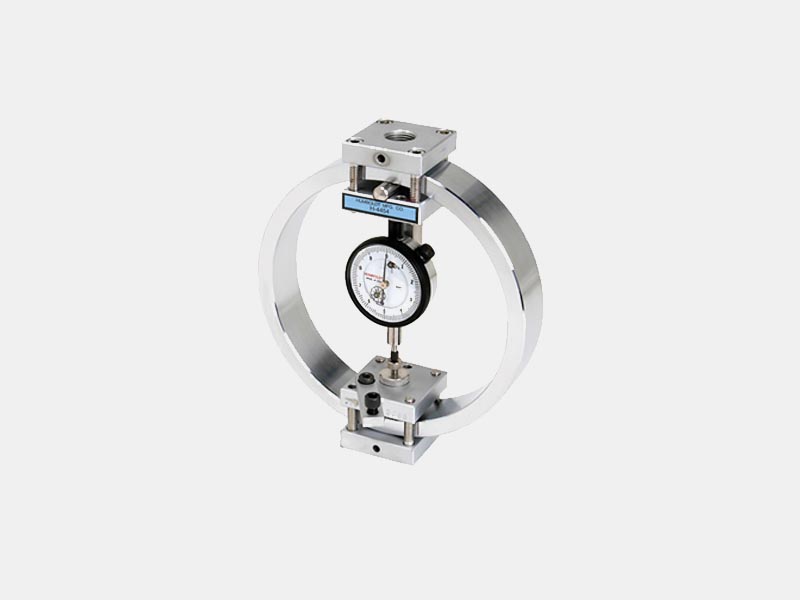

The Proving Rings are made of special steel, carefully forged to provide high and stable accuracy, dependability and repeatability. The dial gauge and anvil are mounted on U-brackets clamped to the ring body by set screws. The indicator has a sensitivity of 0.002mm/ span and the deflection is directly proportional to the applied load.
DIMENSIONS AND WEIGHT :
Size : 0.3 m.(L)x 0.2 m(W) X 0.3m ( H )
Weight : Approx. 5 Kg
SCOPE OF DELIVERY:
- Experimental Setup
- Instructional Manual
