TECHNICAL DESCRIPTION :
- To study all components used in refrigeration system.
- To study the Vapor compression Refrigeration cycle.
- To study the concept of Ice formation.
- To determine the Refrigeration Effect, Work Input, Actual C.O.P.,Carnot C.O.P., Theoretical C.O.P., Relative C.O.P., Ton of Refrigeration, and Plant Efficiency.
TECHNICAL DESCRIPTION :

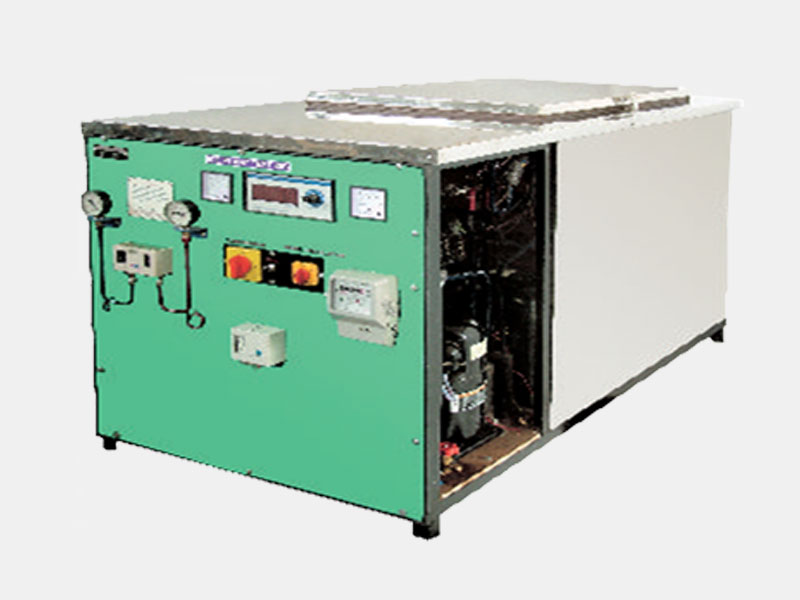

The present equipment uses compression cycle system with Freon – 134a as the cooling media. The unit differs in many aspects than the commercial plants. The equipments consists of control panel, condensing unit, cooling system, brine solution tank & a main tank etc. The brine tank is insulated from all sides with a door at the top side to load/unload the cans. The brine is placed in main tank. The brine tank has a structure at the top side where the cans be hold. An agitator ( stirrer ) is used to stir the brine solution. A drain is provided to the brine tank. This tank is coated from inside to prevent any action by brine. The compressor is mounted at one side of base with a condenser & fan. A liquid receiver is adopted in the circuit. The evaporator coil is held at one side in the brine tank. The panel consists of switches, energymeter, pressure gauges, HP/LP cutout, Thermostat
DIMENSIONS AND WEIGHT :
Size :2.5 m.(L)x 1.5 m(W) X 1.5m ( H )
Weight :Approx. 250 Kg
SERVICE REQUIRED :
Power Supply : 230 v Ac Supply 50 Hz
Brine Solution: 70 ltr
SCOPE OF DELIVERY:
- Experimental Setup
- Instructional Manual
OPTIONAL FACILITY: Data logging Facility
