RANGE OF EXPERIMENTS TO BE CARRIED OUT:
- To study all components used in System.
- To study the Vapor compression Refrigeration cycle.
- To determine the Refrigeration Effect, Work Input, Actual C.O.P.,Carnot C.O.P., Theoretical C.O.P., Relative C.O.P., Ton ofRefrigeration, and Plant Efficiency.

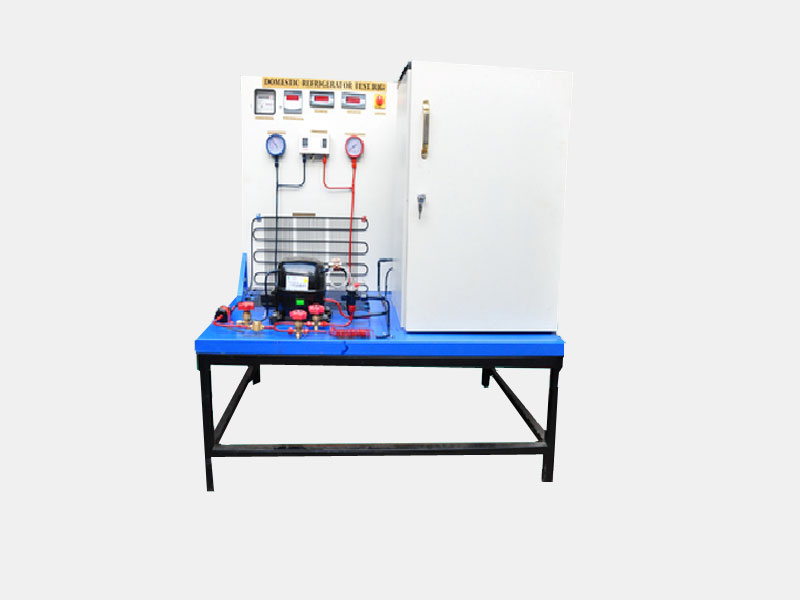

TECHNICAL DESCRIPTION :
The equipment consist of Multiple evaporator. Temperature is measure across condenser and evaporator inlet and outlet respectively. Compressor suction and discharge side pressure is also measured. The panel consists of switches, energymeter, pressure gauges, HP/LP cutout , Thermostat.
DIMENSIONS AND WEIGHT :
Size :1.2 m.(L)x 0.7 m(W) X 1.5m ( H )
Weight :Approx. 100 Kg
SERVICE REQUIRED :
Power Supply : 230 v Ac Supply 50 Hz
SCOPE OF DELIVERY:
- Experimental Setup
- Instructional Manual
OPTIONAL FACILITY: Data logging Facility
